Introducing our Bulk Container - Maxima: the ultimate solution for efficient storage, transport, and handling of bulk materials. Designed with durability and versatility in mind, the Maxima offers unparalleled strength and reliability for a wide range of industries.
Best IBC choice for Optimization in container capacity

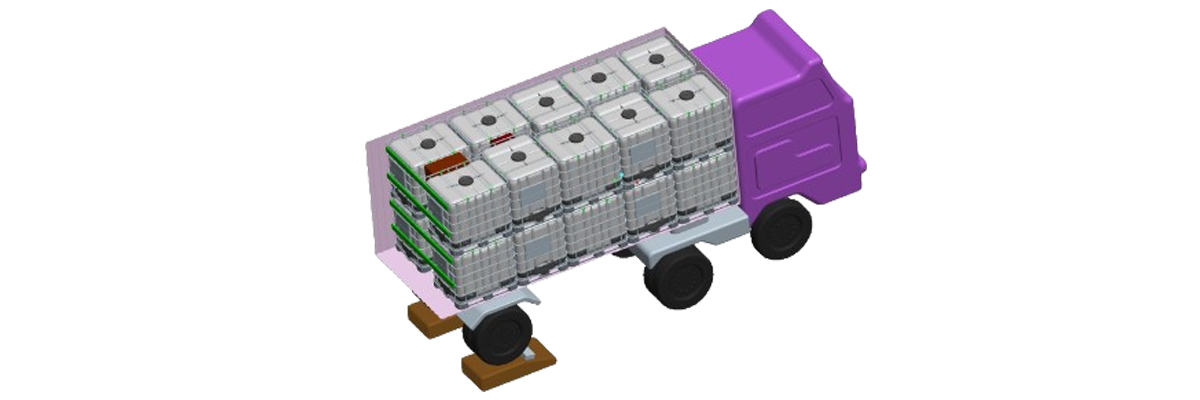

As is common knowledge, standard 1000 litre IBCs when stuffed in a standard shipping container (20 ft. FCL) fit only 18 IBCs. 10 IBCs (1000 liters) are placed on the floor of container (hence forming the bottom layer) and another 8 are stuffed / stacked on the top. Only 8 IBCs can be fitted on the top layer as the height of the shipping container door does not permit accommodation of last 2 Nos 1000 litre IBCs.Time Technoplast Ltd introduces new revolutionary model of IBC “GNX Maxima” which is 1000 ltr Bulktainer with standard international design & dimensional configuration these newly developed GNX Maxima can stuff 20 IBCs in standard 20’ shipping container. This directly increase the product quantity in container by 2 KL (12% increase) resulting in reduction on FOB, sea fright & transportation expenses. Thus making the product more competitive in current stiff stringent scenario.
Technical Specifications
| Description | Bulk Container – CP | |||
|---|---|---|---|---|
| Dimension (L x W x H) (mm) | 1200 x 1000 x 1175 | |||
| Inner Container (UV stabilized HM-HDPE) |
Standard | Transparent | ||
| Optional | Black / Blue | |||
| Useful Volume (Ltr.) | Standard | 1000 Ltr. | ||
| Pallet Type | Standard | Plastic (PE) | ||
| Filling Opening | Standard | DN 150 | ||
| Optional | DN 225 | |||
| Gasket for Filling Opening | Standard | EPDM | ||
| Optional | Viton | |||
| Bottom Discharge Valve* | Standard | DN 50 Butterfly | ||
| Optional | DN 50 Ball DN 80 Butterfly |
|||
| Identification Plate | Standard | 504 x 396 mm | ||
| Optional | 673 x 396 mm 700 x 396 mm |
|||
| Additional Features | Identification plates & Security flap at Discharge Port are press – fitted. Option of Camlock adaptors & NPT coupling for Discharging Valve. |
|||
| Certifications / Approvals | Hazardous goods certification available | |||
